64Y SS304 Corrugated plate packing

This month our company undertook a custom corrugated plate packing from an old customer. Generally, the conventional height of corrugated filler is 200MM, but what our customer requires this time is a plate height of 305MM, which requires a customized mold.

The customer raised question to the bundling between blocks. Our company explained through videos and pictures how to reinforce the orifice plates: welding first, and then binding with cable ties, which is both beautiful and strong. Finally the customer expressed appreciation and recognition for our company’s professional attitude.

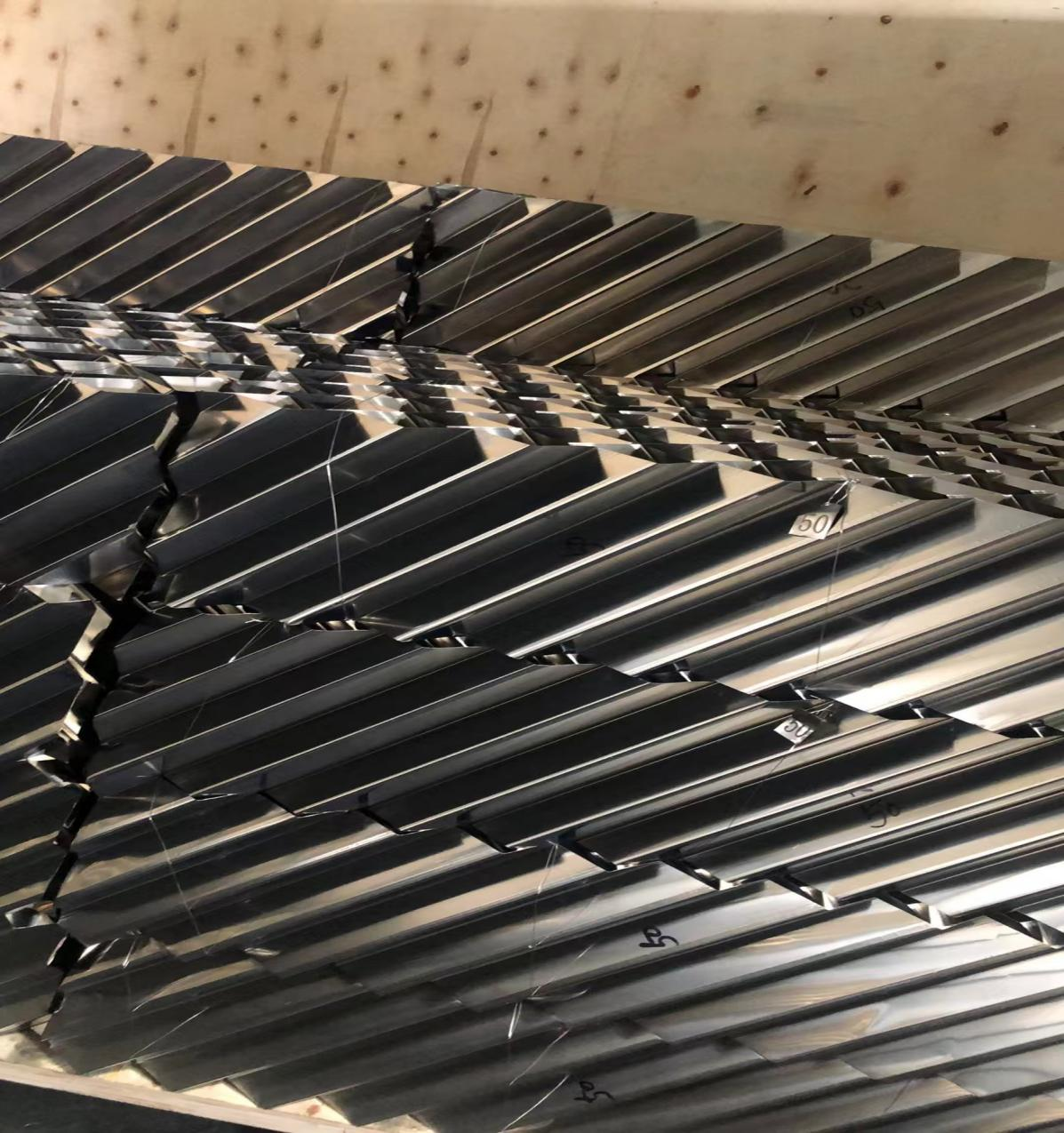

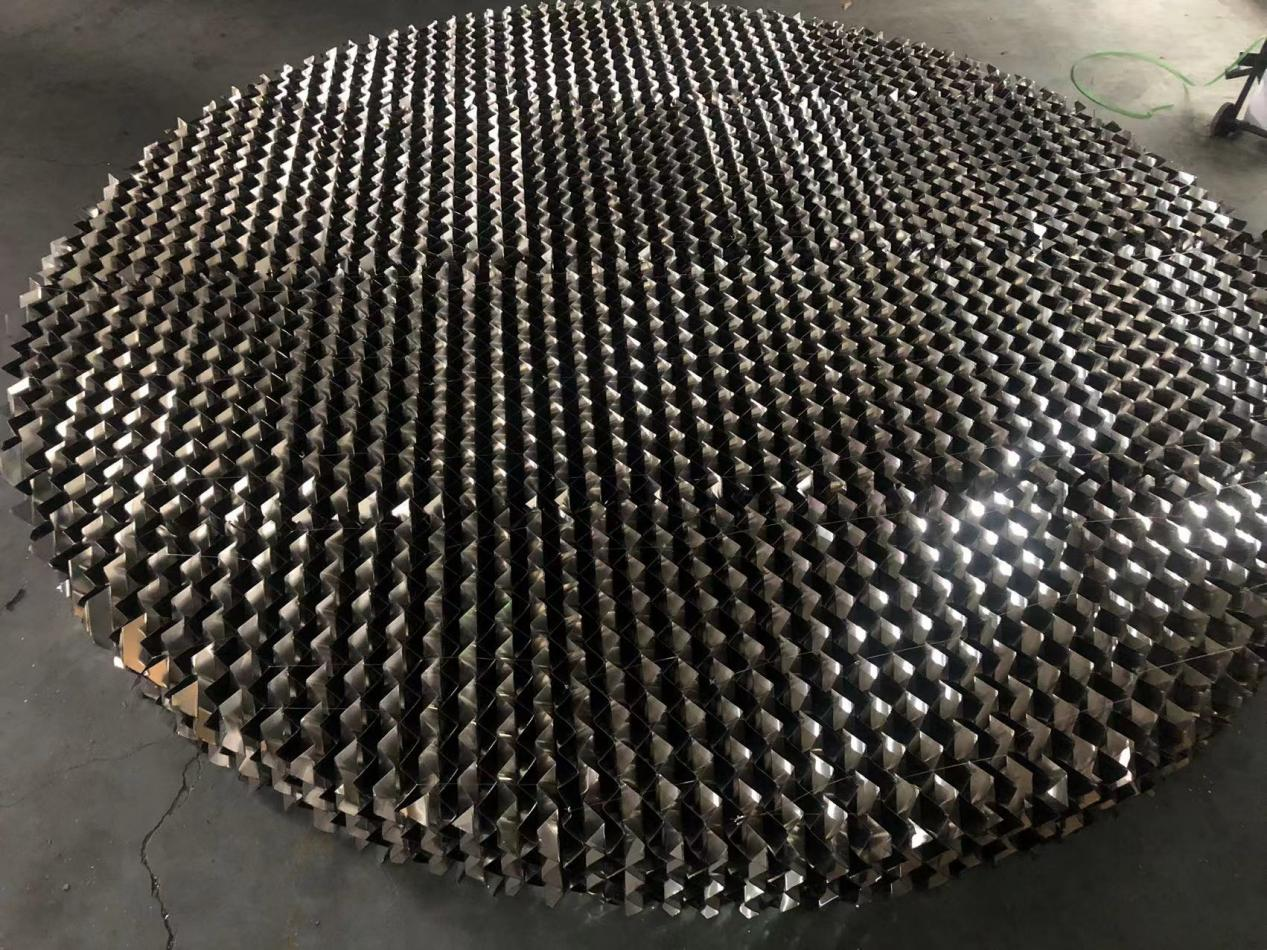

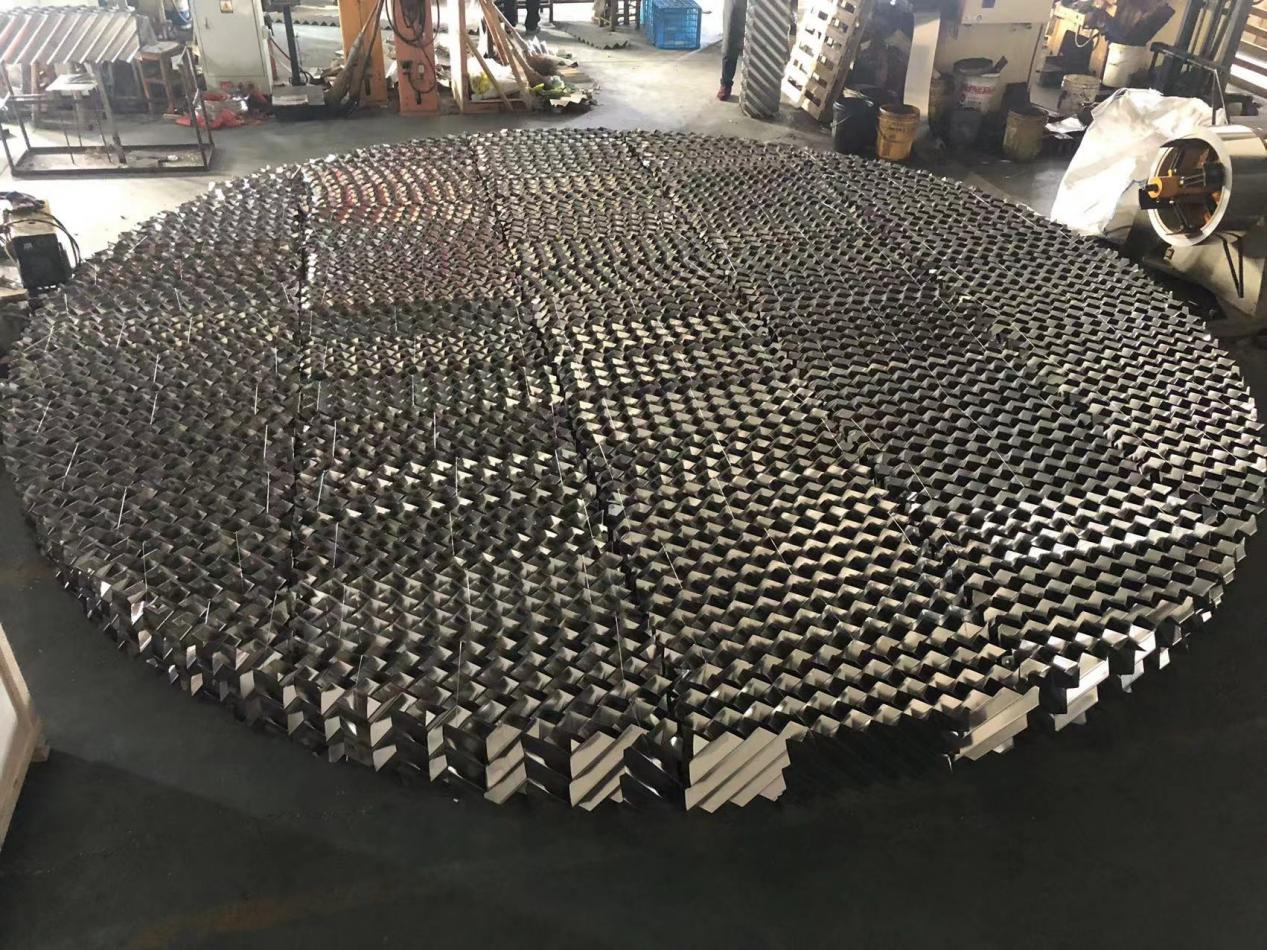

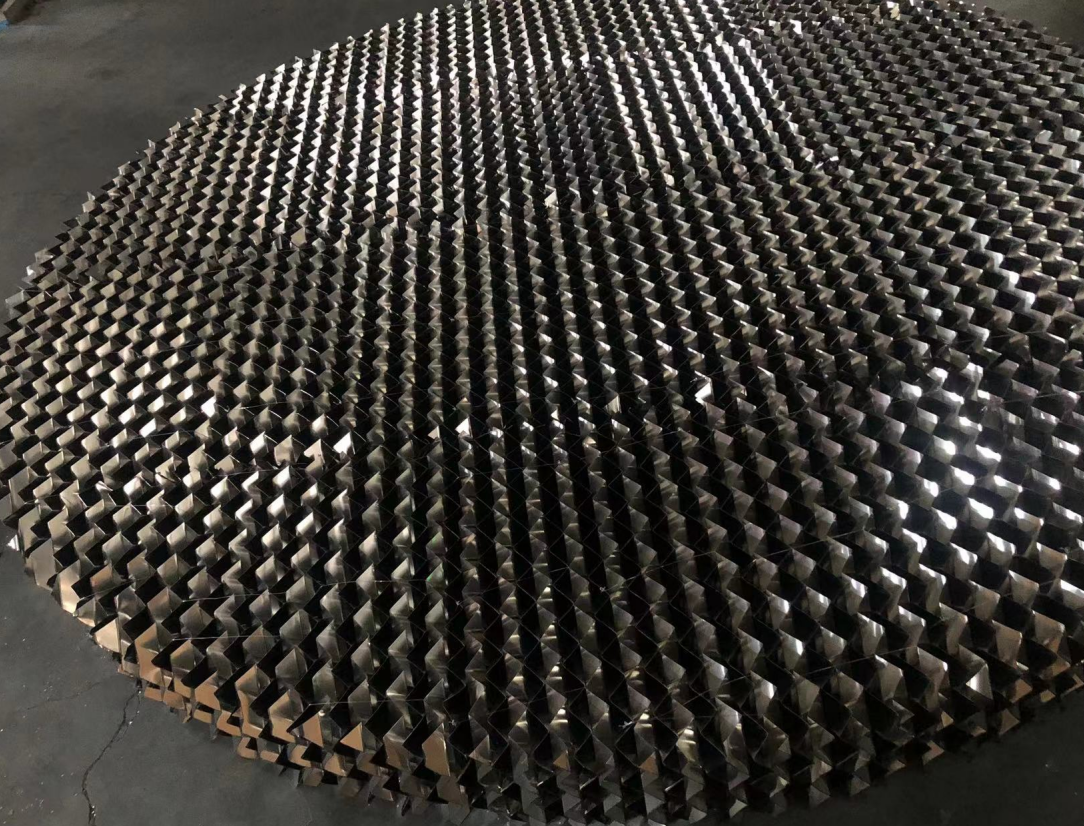

In addition, it can be seen that the finished product is different from the conventional model in addition to the plate thickness. The conventional orifice plate corrugated plate thickness is embossed with a 0.12-0.2mm thin plate, but the 64Y corrugated plate is pressed with a 0.4mm thick plate. Due to the thickness of the plate, the 64Y corrugation is not embossed. The thickness of the 64Y model cannot be used with an automatic welding machine, so it is a hand-welded finished product. The following is a picture of the finished product:

Metal Structured Packing

Metal Structured Packing

http://www.kelleychempacking.com/structured-packing/http://www.kelleychempacking.com/structured-packing/

Metal corrugated plate packing is mainly used in petrochemical industry, fertilizer industry, natural gas purification, smelting, etc. Such as coal chemical industry (benzene washing tower for recovering crude benzene in coking plants), ethylstyrene separation, high-purity oxygen preparation, propylene oxide separation, debutanizer, cyclohexane recovery, gasoline fractionation, atmospheric and vacuum refining and other equipment middle.
