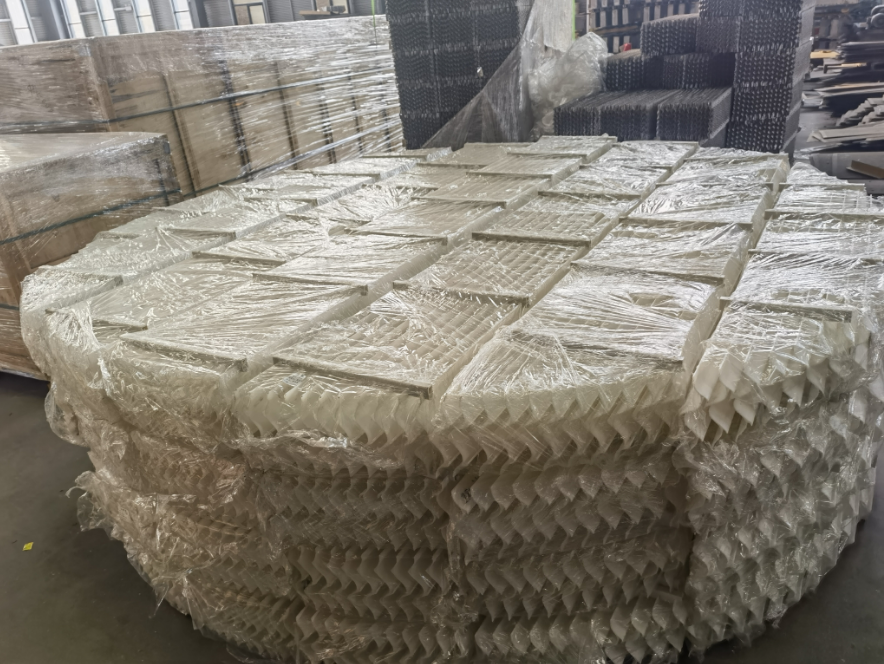

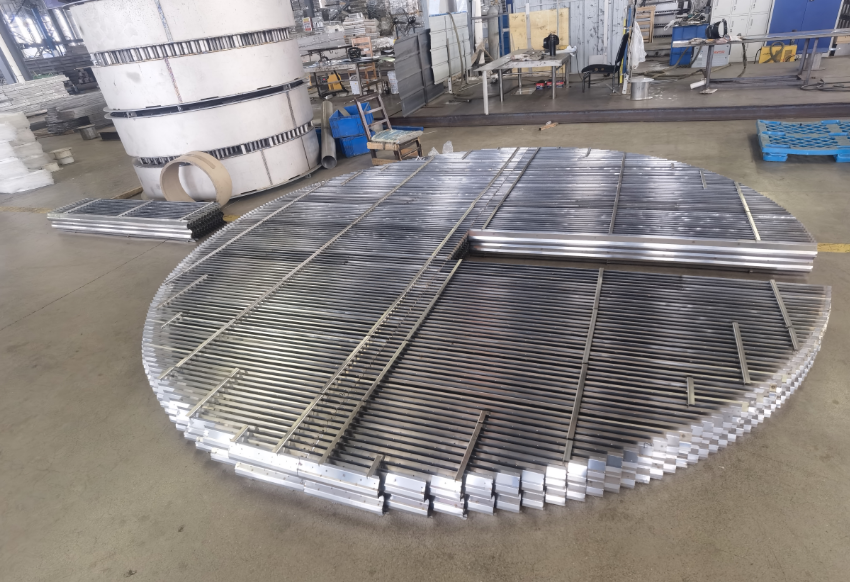

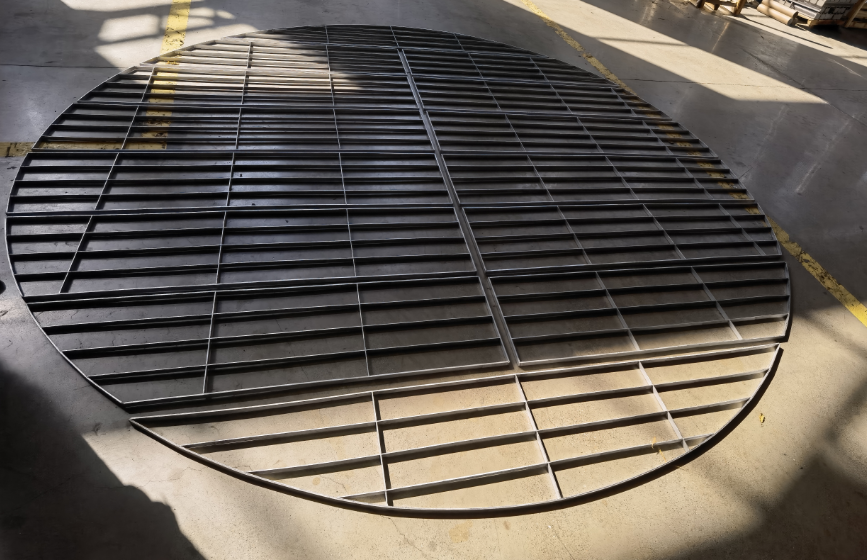

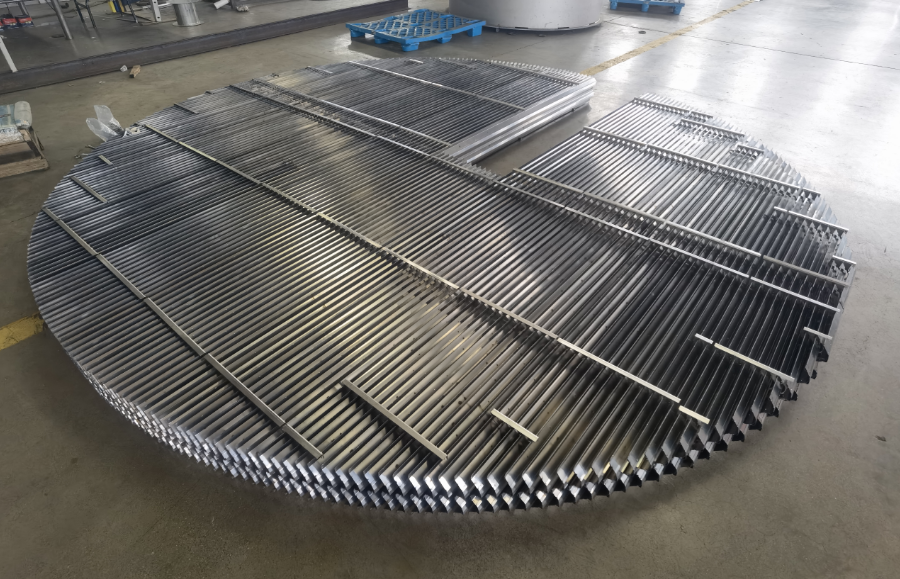

At the request of our VIP old customers, we have recently received a series of orders for demisters and bed limiters( mesh+support grids), all of which are custom-made.

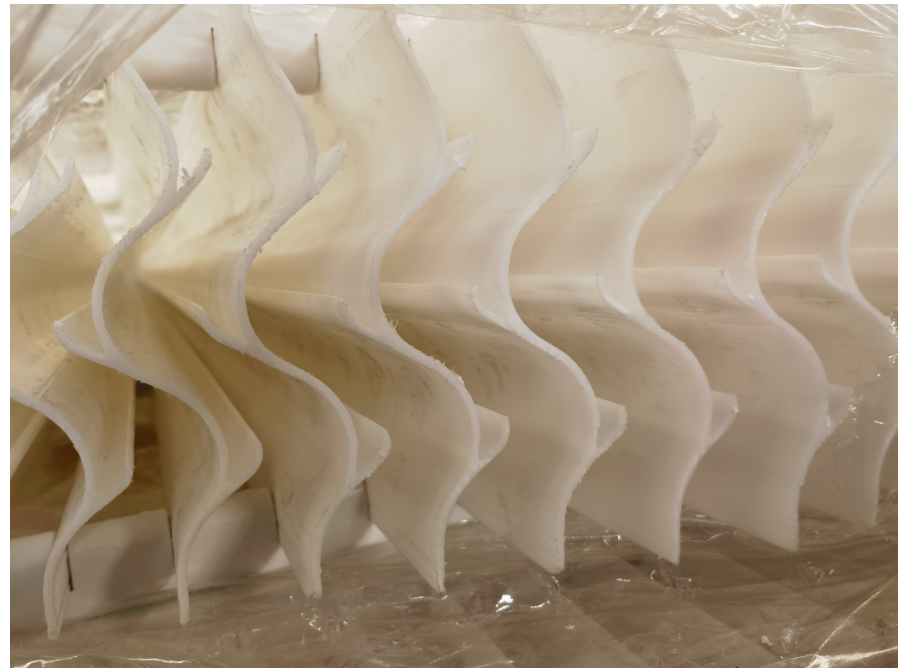

The baffle demister is a gas-liquid separation device that has been widely used in industry. Its main advantages are simple structure, easy manufacturing, high demisting efficiency and easy cleaning.
It is an important device for gas-liquid separation in industrial production and waste gas emission. It uses baffles to divert gas and change the flow direction, so that the droplets collide, adsorb and condense in the demister, thus separating the droplets from the gas.
The demister changes the flow direction of the gas and uses the inertia and gravity to make the mist droplets hit the blades or plates of the demister, thereby achieving gas-liquid separation. Specifically, when the gas containing mist flows through the demister at a certain speed, the mist will collide with the corrugated plate and be captured due to the inertial impact of the gas. The mist that is not removed will be captured at the next turn through the same action. This repeated action greatly improves the demisting efficiency.
Demisters are widely used in absorber towers in wet flue gas desulfurization processes to ensure that the purified gas meets the demisting requirements before leaving the absorber tower.
Post time: Jan-07-2025
