As the earliest product used in industrial packed towers, Raschig ring packing is now favored by customers because of its simple shape and low manufacturing process cost. Questions often asked by customers are how many Raschig rings should be placed in 1 cubic meter, how much is a cubic Raschig ring packing, and how many 50mm Raschig rings are there. Now let’s find out with JXKELLEY.
How many Raschig rings should be placed in 1 cubic meter, which depends on the selected product. The following are the number of ceramic plastic metal Raschig rings of various specifications, the diameter of the packing layer of the packing tower, the filling height of the packing layer and the Raschig ring. Ring specifications, you can calculate the required number. The calculation method is: πR2*height (3.14*radius*height*stacking specific gravity). In this way, you can calculate how many cubic volume the customer needs, or according to the customer’s requirements, it can be calculated in tons.

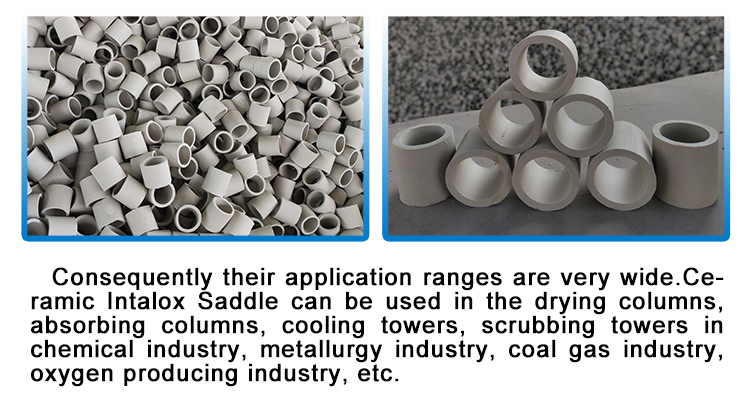

Ceramic Raschig Ring Weight
6mm stacking number per cubic 3022935m³
13mm stacking number per cubic 377867m³
16mm stacking number per cubic 192500m³
19mm stacking number per cubic 109122m³
25mm stacking number per cubic 52000m³
38mm stacking number per cubic 13667m³
40mm stacking number per cubic 12700m³
50mm stacking number per cubic 5792m³
80mm stacking number per cubic 1953m³
100mm stacking number per cubic 1000m³

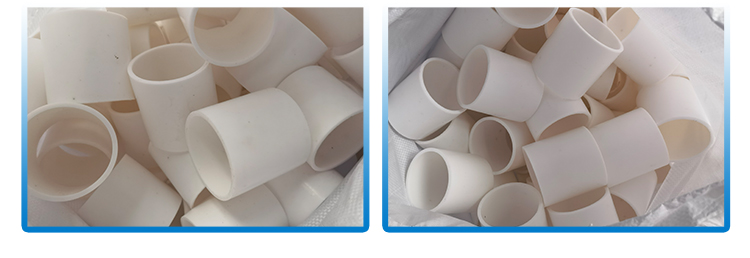

PTFE Plastic Raschig Ring Weight
20mm stacking number per cubic 125000m³
25mm stacking number per cubic 60000m³
38mm stacking number per cubic 15800m³
50mm stacking number per cubic 6800m³
65mm stacking number per cubic 4600m³
76mm stacking number per cubic 2000m³

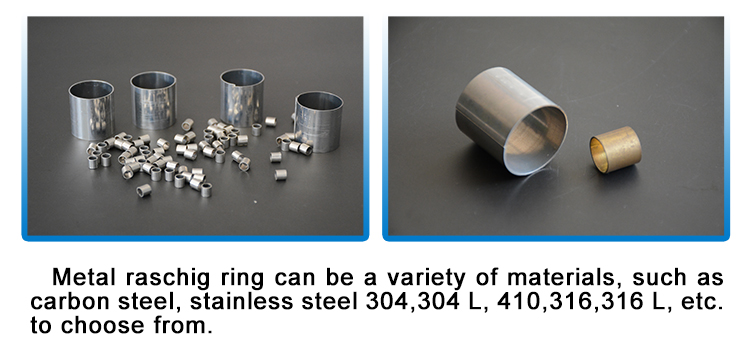

Metal Raschig Ring Weight
8mm stacking number per cubic 180000m³
13mm stacking number per cubic 145000m³
16mm stacking number per cubic 145000m³
18mm stacking number per cubic 45500m³
25mm stacking number per cubic 32000m³
38mm stacking number per cubic 13100m³
50mm stacking number per cubic 9500m³
76mm stacking number per cubic 4300m³
89mm stacking number per cubic 3600m³
